Installation


Outline

Here we explain commands of TASUKE for new installation and making database. If you want to update the TASUKE+ you are already using, please see "How to update".

The time for creation of databases depends on genome size, number of samples and the power of server computer. Steps 5 and 7 are repeated for each accession.

We prepared a shell script as unified tool for installation. It automatically finds the files from specified directory and conducts these process. (it does not support GWAS and System phylogenetic tree.)
More detail: Unified installer

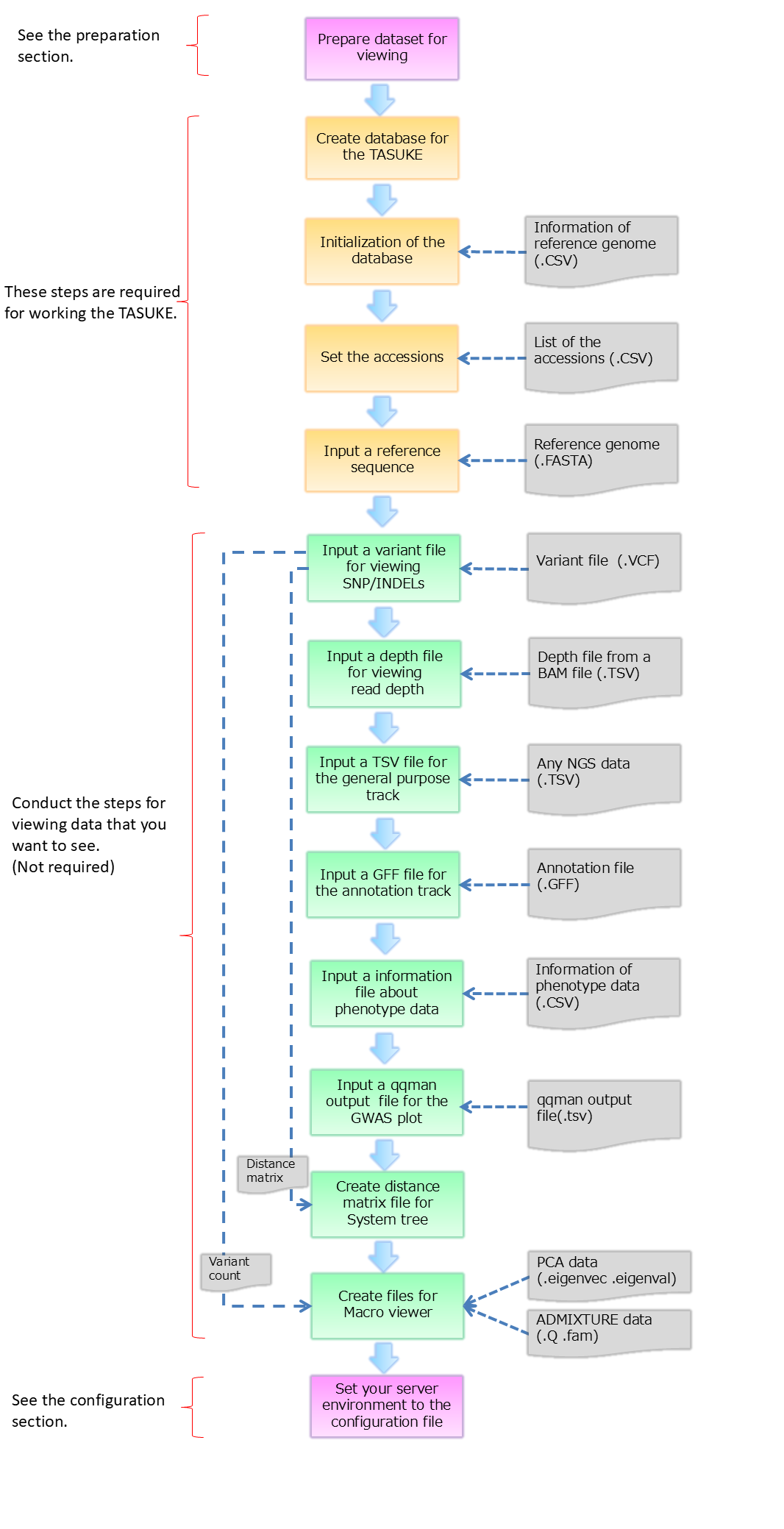

outline
0. System requirements

TASUKE browser requires the LAMP server. And it requires the Linux server that has Apache, MySQL5.0 or later with mysqli module and PHP5.3 or later.


First, configure PHP settings. Allows PHP code to be executed on .html file.

For CentOS8(Almalinux8) or later, set as follows.
If "php-fpm" is not installed, please install and enable it. If the "yum list php-fpm" command returns "Installed", it is installed.
$ yum install php-fpm
$ systemctl start php-fpm
$ systemctl enable php-fpm
Modifying '/etc/httpd/conf.d/php.conf'
# Redirect to local php-fpm (no mod_php in default configuration)
<IfModule !mod_php.c>
  ......
  <FilesMatch \.(php|phar|html)$>
  ......
</IfModule>
Modifying '/etc/php-fpm.d/www.conf'   (Remove the commentout ";" at beginning of line)
;security.limit_extensions = .php .php3 .php4 .php5 .php7

security.limit_extensions = .php .php3 .php4 .php5 .php7 .html
Then restart "httpd" and "php-fpm".
$ systemctl restart httpd
$ systemctl restart php-fpm

For CentOS7(RHEL7) and earlier, the settings were as follows.
Modifying '/etc/httpd/conf.d/php.conf' and restart httpd:
•using php5.x
AddHandler php5-script .php AddHandler php5-script .php .html

•using php7.x
AddHandler php7-script .php AddHandler php7-script .php .html

For Ubuntu, add the following to the end of '/etc/apache2/apache2.conf' and restart httpd:
<FilesMatch ".+\.html?$">
  SetHandler application/x-httpd-php
</FilesMatch>


Next, install additional modules as needed. These are often installed by default, but if they are not, please install them.

If php-mysql is not installed, install it. If the result of the command "php -m" contains "mysqlnd" or "mysqli", it is installed.
•CentOS php5.4 or earlier
$ yum install php-mysql

•CentOS php5.5 or later
$ yum install php-mysqlnd

•Ubuntu
$ apt install php-mysql

If php-json is not installed(you're using php5.1(or earlier) or php7.x), please install it. If the result of the command "php -m" contains "json", it is installed.
$ yum install php-json
If php-curl is not installed(Ubuntu etc.), please install it. If the result of the command "php -m" contains "curl", it is installed.
e.g.) If you want to install curl module on Ubuntu PHP7.4.
$ apt-get install php7.4-curl
Perl modules "FindBin" and "DBD::mysql" are required. If you can view the documentation with "perldoc FindBin" or "perldoc DBD::mysql", they are already installed. If not, please install them.
$ yum install perl-FindBin
$ yum install perl-DBD-MySQL

Additionally, when dealing with large datasets (hundreds of accessions or more), additional settings may be required for MySQL and PHP. See here.
[Optional]. Upgrade database schema(MySQL) from legacy TASUKE to TASUKE+

If you are currently using legacy TASUKE and you are updating it to TASUKE+, you will need to upgrade your database schema. This operation is not necessary if you are installing TASUKE+ newly or are already using TASUKE+.
Update your database schema as follows:

Command

$ tasuke_update_for_gwas.pl -db <database name> -u <user> -p <password>

-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database

After that, by updating the web content, the update of TASUKE will be completed.
1. Create a database(MySQL)

Here you create a MySQL database. First, you log-in to mysql with root authority and create a database. "database name" used here is used following installation steps.

$ mysql -u <user> -p

> Enter password: <password>

$ mysql> create database <database name>;

$ mysql> exit;


2. Initialization of database

This tool creates several tables on your database for TASUKE.

From ver.20241122 onwards, the DB mode option(-m) has been added. You can now select "Multi-sample VCF (mvcf)" mode instead of the conventional "Single sample VCF (svcf)" mode. The DB mode determined here will be automatically detected in the following steps (the user does not need to be aware of the current DB mode).
Also, from ver.20260326 onwards, the default DB mode has been changed from "svcf" to "mvcf".
The features of each mode are as follows.

Multi-sample VCF mode (default)
  • The GT and Ploidy values in the VCF file can be displayed as is.
  • Since the site-common information (such as SnpEFF) is managed in a separate table, reducing DB size.
  • Generally, you cannot add or remove accessions(samples) later (as this may result in inconsistent data).
Single-sample VCF mode
  • Even if it is a Multi-sample VCF, it will be converted to the contents of a Single-sample VCF for each accession(sample).
  • Since the site-common information (such as SnpEFF) is duplicated for each accession, increasing DB size.
  • GT values are converted to "0/1", "1/1", or "1/2" (poly-ploid GT is truncated to the first two alleles. e.g. 0/1/1 > 0/1 ).
  • You can add or remove accessions later without any conflicts

Command

$ tasuke_init.pl -db <database name> -u <user> -p <password>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database
-m <DB mode> : mvcf(default)/svcf

Optional:
-h <remote host> : To connect remote host name
-r : Delete the tables from database.

> Input csv file about chromosome's information below.
> Where is the csv file? > <information of reference genome(.csv)>
> Are you sure creating database [y|n] > y


When you missed in chromosome list, you must create MySQL database again.

$ mysql -u <user> -p

> Enter password: <your password>

$ mysql> drop database <database name>;

$ mysql> create database <database name>;

$ mysql> exit;


3. Add an accession

This tool registers the accessions to database.

Command

$ tasuke_accession.pl -db <database name> -u <user> -p <password>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database

Optional:
-h <remote host> : To connect remote host name
-r : Delete the accessions from database.

> Input csv file about list of accessions below.
> Where is the csv file? > <accession list(.csv)>
:
> Are you sure adding or updating database?[y|n] > y

When you want to delete an accession. You can delete the accession with -r option.

$ tasuke_accession.pl -r -db <database name> -u <user> -p <password>

-----------------------------------
Deleting accession from database
-----------------------------------

Input csv file about list of accessions below.

* WARNING : This process deletes not only accession information but also depth and variant data.


4. Input a Reference Genome file (FASTA)

This tool sets reference genome to database.

Command

$ tasuke_ref.pl -db <database name> -u <user> -p <password> -f <reference genome>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database
-f <reference genome> : FASTA formatted reference genome file

Optional:
-h <remote host> : To connect remote host name
-r : Delete the reference genome from database.

When you want to input a reference genome again, you can delete it with '-r' option.

$ tasuke_ref.pl -r -db <database name> -u <user> -p <password>


5. Input a Variant (VCF) file

This tool sets variants to database. This is suitable for the following cases:

  • The DB mode is "Multi-sample VCF(mvcf)"
  • And the number of samples (=accessions) is less than 1000.
For datasets other than those listed above, please use other programs.


"-k" option only checks the correspondence between VCF samples and DB AccessionIDs. DB registration is not performed. It is strongly recommended to perform this check before DB registration.
Command:
$ tasuke_variant_vcf_multi.pl -db <database name> -u <user> -p <password> -f <VCF or VCF.gz>

Either required (*1):
-n <IDs> : Comma-separated AccessionID list (Corresponds to the order of VCF sample names) (*2)
-m <Path> : Path to "VCFsampleName > AccID" correspondence table file. VCFsampleName[,]AccID[\n]...
(none) : Consider VCF sample name as AccessionID.

Other options:
-h <remote host> :(default: localhost)
-z : Register GT:0/0 variant(not by default)
-t <num>: Invalid parameter, kept for compatibility.
-k : TEST mode. Check AccessionIDs, but do not perform DB registration.

Sub-action:
-a : Append variant information to a table that already contains records.(*3) Records with the same position will be registered multiple times.
-r : Truncate variant table(d*_variant) for the specified AccessionIDs. AccessionID itself is not deleted.
-q : [Use with "-r"] Truncate common variant table(sys_variant)

(*1) priority is n > m, Only the AccIDs specified here will be registered.
(*2) See description in tasuke_variant_vcf.pl on this Wiki.

An example of the SampleName conversion table file (-m) is as follows. Samples not described here will not be registered. The order of name lines does not affect.
VcfSample1,DbAccId1
VcfSample2,DbAccId2
VcfSample3,DbAccId3
......
A multi-sample VCF file contains a GT:0/0 variant, but it is not registered in DB by default as it will increase data size and reduce performance. Add '-z' option to register GT:0/0 variant. GT:0/0 variant will be displayed on the track in GT color mode.

When you want to input a VCF file again, you can delete it with '-r' option.

$ tasuke_variant_vcf_multi.pl -r -q -db <database name> -u <user> -p <password> -f <VCF file>


6. Input a Depth information file (Optional)

This tool sets depth information to database. First you need to create TSV files from your BAMs (see Preparation section).

Command:

$ tasuke_tsv_db.pl -db <database name> -u <user> -p <password> -n <ID> -f <depth file>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database
-n <ID> : Destination ID (accession)
-f <Depth file> : TSV formatted depth information file

Optional:
-h <remote host> : To connect remote host name
-r : Delete the variants from database.

A faster parallel wrapper script is available for registering a large number of samples (tens to hundreds). Details are below.


You can delete a TSV file with '-r' option.

$ tasuke_tsv_db.pl -r -db <database name> -u <user> -p <password> -n <ID>

If the number of samples is large, we recommend the following script(tasuke_tsv_db_multi.pl). This script simplifies operations and speeds up DB registration by executing multiple "tasuke_tsv_db.pl" in parallel.
"-k" option only checks the correspondence between TSV samples and DB AccessionIDs. DB registration is not performed. It is strongly recommended to perform this check before DB registration.
Command:
tasuke_tsv_db_multi.pl -db <database> -u <user> -p <password>

-d <DirPath> : Directory path where the TSV files are located. By default, filename(without extensions) is considered as AccessionID.
-m <Path>: Path to "TsvFilePath > AccID" correspondence table. If "-d" is specified, TsvFilePath is its relative path. TsvFilePath[,]AccID[\n]...

Other options:
-h <remote host>:(default: localhost)
-t <num>: Number of threads(default: 4)
-k : TEST mode. Check AccessionIDs, but do not perform DB registration.

Sub-action:
-r : Delete depth information for the specified AccessionIDs. AccessionID itself is not deleted.
An example of the FileName conversion table file (-m) is as follows. Samples not described here will not be registered. The order of name lines does not affect.
TsvFilePath1,DbAccId1
TsvFilePath2,DbAccId2
TsvFilePath3,DbAccId3
......

7. Input a TSV file to the general purpose track (Optional)

This tool inputs any kind of TSV formatted NGS data. To input the general purpose track, you can do it by using tasuke_tsv_db.pl with '-c' option. First you need to create TSV files from your BED or BEDgraph files (see Preparation section).

Command:

$ tasuke_tsv_db.pl -c -db <database name> -u <user> -p <password> -n <ID> -f <tsv file>

You can delete the file with '-r' option.

$ tasuke_tsv_db.pl -r -c -db <database name> -u <user> -p <password> -n <ID>

If you want to set any multiple conditions to the general purpose track, try following command. And load a TSV file using tasuke_tsv_db.pl.

Command:

$ tasuke_add_condition.pl -db <database name> -u <user> -p <password> -n <ID> -f <depth file>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database
-c <condition_id> : Condition ID(name)

Optional:
-h <remote host> : To connect remote host name
-r : Delete the conditon and tables from database.

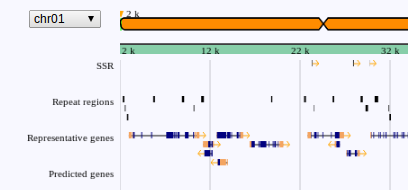

8. Annotation track (Optional)

The annotation track on the TASUKE browser can be added from GFF files.Tasuke_screenshot

Command:

$ tasuke_track_gff.pl -db <database name> -u <user> -p <password> -f <annotation file> -t <track name>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database
-f <annotation file> : GFF(3) formatted file
-t <track name> : It sets here is directoly used for track name on TASUKE

Optional:
-h <remote host> : To connect remote host name
-r : Delete the annotations from database.

You can delete the file with '-r' option.

$ tasuke_track_gff.pl -r -db <database name> -u <user> -p <password> -t <track name>


9. Phenotype data (GWAS) (Optional)

The phenotype data can be added for using GWAS function on TASUKE.

Command:

$ tasuke_phenotype.pl -db <database name> -u <user>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name

Optional:
-h <remote host> : To connect remote host name
-r : Delete the phenotype data from database.

Enter db password: <password>
> Where is phenotype data csv file?
(File format: Breed Name,Phenotype,Phenotype Value)
# <phenotype data file(.csv)>
> Where is qqman output file?
# <qqman output file(.txt or .tsv)>
> What is a phenotype of the file?
# <phenotype>
> Completed.
> Read the next file? [y/N]
# y: > Where is qqman output file?
 # N: Done.

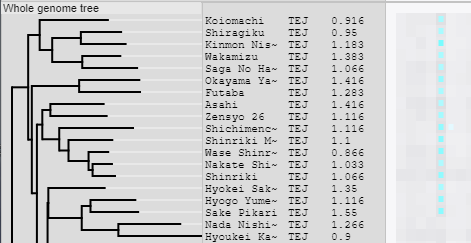

10. Use System phylogenetic tree (Optional)

Tasuke_screenshot

To use the System phylogenetic tree, You need to create a distance matrix and/or Newick and set its file path in the config file.
There are several ways to create them. See here for details.

1. Use the script included in TASUKE+ package.
1-1. Create from DB contents (tasuke_tree_dmatrix.pl)
  • Distance matrix format
  • Newick format
1-2. Create from multi-sample VCF file (tree_dmatrix_fromVcf.pl)
  • Distance matrix format
  • Newick format
2. Create in your own way
  • Distance matrix format
  • Newick format
3. Create Newick from an existing distance matrix
  • Use TASUKE's "Export Current SystemTree" function
  • Use getNewick.php
  • Prepare Newick in your own way


11. Use Macro Viewer (Optional)

The Macro Viewer provides intuitive exploration of ancestral components and genome-wide patterns across large-scale population genomic datasets. Macro Viewer has four display modes, and the user must prepare the corresponding data in advance and set its files path in the config file.

1. Variant count / Variant count(impact=high)
Use the script provided with the package. Create a data file based on the TASUKE database (SnpEff information for variants). Divide chromosomes into blocks of a certain length (e.g., 50 Kbp) and count the number of variants in each block.
One data file contains data for "Variant count" and "Variant count(impact=high)".
Copy <outfile> in a path accessible to www user (e.g., TASUKE "conf" directory) and set that path "$variantDensPath = ..." to the config file.

Command:

$ tasuke_mv_variantcount.pl -db <database name> -u <user> -p <password> -o <outfile>

Required:
-db <database name> : Database name for TASUKE
-u <user> : User name
-p <password> : Password for the database
-o <outfile> : Output file path (Default: STDOUT)

Optional:
-h <remote host> : To connect remote host name
-r <order file> : Target accession list file(Generally tasuke_www/conf/order.conf) (Default: all Accessions)
-w <Blocksize> : The block size (bp) for counting variants. (Default: 50000)
-x : Also counts variants with missing GQ or DP.

2. PCA
PCA analysis results with population genomics tools such as PLINK (https://www.cog-genomics.org/plink/2.0/) can be displayed. In case of PLINK pca, copy both of ".eigenvec" and ".eigenval" output files in a path accessible to www user (e.g., TASUKE "conf" directory) and describe pathes to these files "$pcaVecPath = ..." "$pcaValPath = ..." in the config file.

Example of PCA analysis:
  1. Filtering variants for suitable dataset (e.g. biallelic SNPs with minimum missing rate 0.2 and minimum allele frequency > 0.05). are extracted from a vcf file and convert to a BED format file.
  2. Convert a vcf file to a BED format file (optionaly conduct imputation by Beagle).
  3. LD pruning by PLINK (e.g. with "--indep-pairwise 10kb 1 0.8" for 1st, and "--indep-pairwise 50 1 0.8" for 2nd rounds).
  4. Conduct PCA analysis by PLINK pca.
3. ADMIXTURE
Population structure results analyzed by admixture tool with multiple "K"s (assumed ancestral populations) are displayed. Copy ".Q" files in a path accessible to www user (e.g., TASUKE "conf" directory) and set their pathes "$admixtureK2Path = ..." to the config file.

Unified installer (Optional)

This tool supports installation of TASUKE. It automatically detects any datasets and load the data to a database. It treats each file name as registered ID. Before running the tool, confirm relation of file names and accession ID.
Unified installer does not support GWAS, system phylogenetic tree, or Macro Viewer registration. Also, this tool assumes that multiple single-sample VCF files are used for Variant registration. Please perform DB registration by multi-sample VCF manually separately.

Command:

$ install.sh <TASK> <Option>

TASK (Required):
all : All installation processes
init : Setting defalut tables to a database
acc : Accession informtaion
ref : Reference sequence
ann : Annotation
var : Variants
tsv : Read depth or General purpose track (defalut: read depth)

Option:
-h : Help
-r : Delete specified datasets from the database.
-g : TSV file load to general purpose track.

Set your server environment to a 'install.conf' to run the 'install.sh'. And place the install.conf in same directory as install.sh.

Modifying install.conf

##### Configuration #####
#Path of 'tasuke_bin'
SCRIPTS='/PATH/tasuke_bin/'

#Database
#mysql or oracle
BACKEND='mysql or oracle'

#Database connection
DB=<database name>
USER=<user>
PASS=<password>

#For oracle
TABLESP=<tablespace name>

#Directory for datasets
# 'install.sh' searches for datasets in following directories. And it set the datasets to the database.
# For example, this tool searches for VCF file in './tasuke_sample_data/variants/', when setting variants to the database.

#Datasets
DATADIR='/PATH/tasuke_sample_data/'

#Enter the fasta file name you use as reference genome. not a directory. DIR_FASTA='./reference.fasta'

#This scripts searches for '.gff' from in 'DIR_GFF'.
DIR_GFF='./'

#This scripts searches for '.vcf' from in 'DIR_VCF'.
DIR_VCF='./variants/'

#This scripts searches for '.tsv' from in 'DIR_TSV'.
DIR_TSV='./depth/'

#File format of your VCF files ['samtools' or 'gatk']
VCF='gatk'
#########################

In above case, the tool searches for any file from /PATH/tasuke_sample_data/ and load the file to the database.
e.g.) The tool searches for any files from '/PATH/tasuke_sample_data/variants/'. If the tool finds 'human001.vcf', it load the vcf to the table for human001 in your database.

Optimize tables (Optional)

If browsing TASUKE is extremely slow, such as "It takes several tens of seconds to scroll the track", MySQL table statistics may not have been created.
(It seems that it may occur when the database is loaded for a long time by registering a large dataset)
MySQL table statistics are normally created automatically, but you can create them manually with the script below:

Command
$ tasuke_optimize_tables.pl -db <database name> -u <user> -p <password> -a/-v/-d/-c/-s
Either required:
-a : optimize all tables(Same as specifying "-v -d -c -s")
-v : Optimize variant information tables
-d : Optimize depth information tables
-c : Optimize general purpose track tables
-s : Optimize other system-related tables
Other options:
-h : (default: localhost)
-k : TEST mode. Check AccessionIDs, and output SQLs, but do not execute it.
Installation of web contents

If you want to update already installed TASUKE+, please see "How to update".

Installation of web contents is as simple as copying files.
After download TASUKE package, copy the contents of "tasuke_www" to Apache document root under any name.
Below is an example command.

Unpack and copy files

$ tar xf ./tasuke-plus.tar

$ mkdir /var/www/html/tasuke

$ cp -r ./tasuke-plus/tasuke_www/* /var/www/html/tasuke/



Starting TASUKE

Starting

First, set below configuration at least.

Modifying conf/config.php

$db = <database name>;
$host = 'localhost' or <hostname>;
$user = <user name>;
$pswd = <password>;

Access the server by web browser.
if you allocated tasuke_www/* to /(Documentroot)/tasuke/, access the following URL.

http://your_domain/tasuke

A web browser which can accept HTML5 is required. We checked the operation of TASUKE with Edge, Firefox and Google Chrome on Win and Mac.

If the TASUKE does not work, see this document.



Additional setting (Optional)

Exposing on the internet

Security setting for exposing on the internet.

1. Limited-mysql-user for security protection

$ mysql -u <user> -p

> Enter password: <password>

$ mysql> create user '<new user>'@'<hostname>';

$ mysql> set password '<new user>'@'<hostname>'=password('<new password>');

$ mysql> grant select on <database name>.* to '<new user>'@'<hostname>';

$ mysql> flush privileges;

$ mysql> exit;

Modifying conf/config.php

$user = <new user>;
$pswd = <new password>;

2. Access limiting for the configuration files
 Modifying /etc/httpd/conf/httpd.conf
<Directory "<Apache document root>/conf" >
Require all denied
</Directory>
For Apache 2.2 and earlier, Modifying /etc/httpd/conf/httpd.conf
<Directory "<Apache document root>/conf" >
Order deny,allow
Deny from all
</Directory>

Compressing the database

Using database compression, data size will be reduce and the performance is slightly improve. Particularly TSV (depth and general-purpose) data size will be reduce to 1/2 to 1/6.

Compressing
Stop the mysql-server

$ service mysqld stop

Move to the database directory

$ cd <mysql database directory> (default: /var/lib/mysql/<database name>)

Compressing the tables
<tsv table> indicates dx_accession or dx_accession_cstm
Myisampack and myisamchk are repeated for each accession

$ myisampack -v <tsv table>

$ myisamchk -rq --sort-index --analyze <tsv table>.MYI

Start the mysql-server

$ service mysqld start

Load the tables

$ mysql -u <user> -p

> Enter password: <password>

$ mysql> flush tables;

$ mysql> exit;

Decompressing
Stop the mysql-server

$ service mysqld stop

Deompressing the tables

$ myisamchk --unpack <tsv table>

Start the mysql-server

$ service mysqld start

Load the tables

$ mysql -u <user> -p

> Enter password: <password>

$ mysql> flush tables;

$ mysql> exit;



How to update

Updating

This section describes how to update a TASUKE.

1. Unpack & Copy

After download TASUKE package, set "tasuke_www" to the Apache document root.

Unpack and copy new files

$ tar xf ./tasuke-plus.tar

$ cp -r ./tasuke-plus/tasuke_www/* <TASUKE DIRECTORY>

2. Upgrade your database schema (only if necessary)

Since the first version of TASUKE+ (20180720), there is no DB schema change, so this operation is unnecessary.

3. Edit the configuration file

Set any items to the updated configuration file.
Alternatively, the added configuration items are documented for each version in the Release note and can be copied and pasted into the previous version's configuration file.
More detail: Configuration-page
